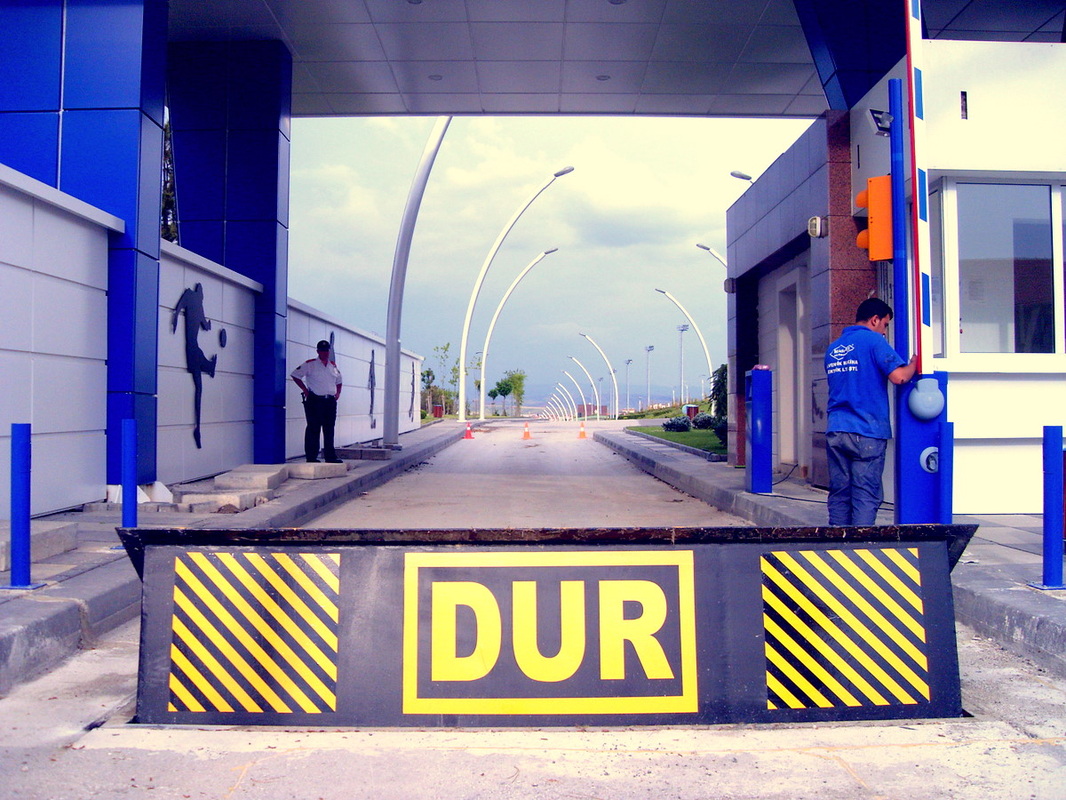

IMAGE ZOOMRoad blocker barrier systems are preferred at areas requiring high and special security, public buildings, private buildings, business centers, factory entrances and exits, embassy entrances and exits, airports, military sites, hotels, etc. They are high security barrier systems with high impact strength, manufactured in hydraulic and electro-mechanical types in order to block attacks conducted by vehicles carrying bombs. They are installed in the ground by digging and they can be manufactured in lengths from 2 to 5 m, and heights from 50 to 100 cm. They are compatible with all types of gate automation systems. (License plate recognition, RFID, etc.) Opening and closing responses are quite fast. They open the way in a short period of 3-6 seconds.
Technical Specifications |
||||||
| Dimensions | 1200x1200x3000mm | |||||
| Stroke | 600 mm | |||||
| Operating Voltage | which} 10% | |||||
| Reverse Voltage Protection feature | Yes | |||||
| Standby Current | 2A @ which | |||||
| A feint Current | 8A @ which | |||||
| Operating Temperature | -20 ° c/+ 50 ° c | |||||
| Button Type | 3-button (on/off/Stop) | |||||
| Warning Elements | Traffic Lamp, Flaşor Lamp, Siren | |||||
| Security Products | Photocell, Lab Detector System, RFID, System, Fingerprint/Password Device | |||||
| Programmme Security | 100 years | |||||
| Error Prevention | Power-On-Reset | |||||
| Bug Tracking Feature | Yes | |||||
| Limit Switch Type | Inductive | |||||
| Stop Feature | Yes | |||||
| Auto Power Off Feature | Yes | |||||
| Low Power Warning Feature | Yes | |||||
| Over-current Protection | Yes | |||||
| Motor Protection | Real time clock with | |||||
| Opening/Closing Time | 3-15 sec | |||||
| Password Protected Service Menu | Yes | |||||
| Hydraulic Pressure Gauge | Yes | |||||
| Power Temperature measuring | Yes | |||||
| Power Level Indicator | Yes | |||||
| Maximum Operating Pressure | 160 Bar | |||||
| Operational Pressure | 20-50 Bar | |||||
| Reverse Pressure Valve | Yes | |||||
